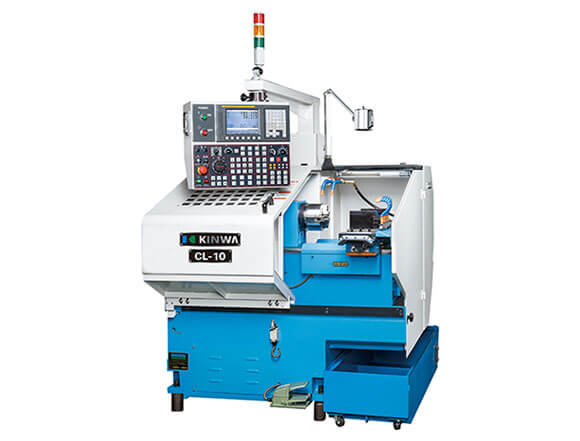

CL-10
- Chuck 6", MP 7 - 65
- Swing 320 mm
- Bar capacity 42, 65 mm
| Swing over bed | 320 mm |
| Standard turning diameter | 150 mm |
| Standard cutting length | 100 mm |
| X - axis | 480 mm |
| Z - axis | 250 mm |
| Speed | 80 ~ 4000 rpm |
| Spindle nose | A2 - 5 |
| Spindle bearing ID | 90 mm |
| Spindle bore | 50 mm |
| Bar Capacity | 42 mm |
| tools | Gang bed fixed on cross slide |
| OD tool shank | Ø 20 mm |
| ID tool shank ( Max. ) | Ø 32 mm |
| X - axis | 10 m / min |
| Z - axis | 8 m / min |
| Main motor (30 min.) | 10 HP 7.5 kw |
| Servo motor | 1.6 HP 1.2 kw |
| Hydraulic unit motor | 1 HP 0.75 kw |
| Coolant pump motor | 1 / 2 HP 0.37 kw |
| Height of machine | 1900 mm |
| Weight of machine | 2100 kgs |
| Floor space | 1750 x 1900 mm |
- Specifications are subject to change without notice.
Standard Equipment & Accessories
- FANUC 0iMate - TD controller
- Main motor 10 HP
- Hydraulic system
- 6" hollow 3 - jaw hydraulic chuck
- Hard jaws & soft jaw 1 SET / EACH
- Coolant tank & coolant system
- Moving door & splash guard
- Work light
- Single tool holder 4 PCS
- Double tool holder 1 PC
- Drill holder 1 PC
- Boring bar socket 1 SET
- Drill socket 1 SET
Optional Equipment & Accessories
- Subplate
- Single, double tool holder for subplate
- Drill holder for subplate
- Chip conveyor & chip bucket
- Trnsformer
- Spindle mechanical orientantion, 15°, 24 position
- Drill attachment
- Graphic display
- Manual - loading automatic feeder system
- Milling angle attachment
- Material puller
All sets of special subplate can be changed. Setting all of tools on subplate in advance is suitable for long-rang and large quantity processing. Don't alter the tools one by one, only replace the subplate when change workpiece. Saving large time of tool test.
Gang type table saves work time of tool's feeding, changing and return.
| Swing over bed | 320 mm |
| Standard turning diameter | 150 mm |
| Standard cutting length | 100 mm |
| X - axis | 480 mm |
| Z - axis | 250 mm |
| Speed | 80 ~ 4000 rpm |
| Spindle nose | A2 - 5 |
| Spindle bearing ID | 90 mm |
| Spindle bore | 50 mm |
| Bar Capacity | 42 mm |
| tools | Gang bed fixed on cross slide |
| OD tool shank | Ø 20 mm |
| ID tool shank ( Max. ) | Ø 32 mm |
| X - axis | 10 m / min |
| Z - axis | 8 m / min |
| Main motor (30 min.) | 10 HP 7.5 kw |
| Servo motor | 1.6 HP 1.2 kw |
| Hydraulic unit motor | 1 HP 0.75 kw |
| Coolant pump motor | 1 / 2 HP 0.37 kw |
| Height of machine | 1900 mm |
| Weight of machine | 2100 kgs |
| Floor space | 1750 x 1900 mm |
- Specifications are subject to change without notice.
